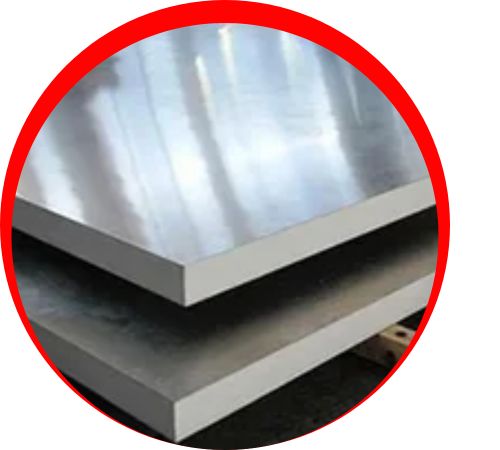

Al Vishwas Nickel Alloys, a first-rate manufacturer and supplier based in Dubai, UAE, has earned a strong reputation for supplying high-quality, high-temperature-resistant materials to industries across the world. Among their notable products, **Nimonic 90 Sheet and Plates** are especially valued for their impressive strength, thermal stability, and corrosion resistance. Made using advanced metallurgical methods, these sheets and plates are designed to withstand extreme conditions, which makes them ideal for aerospace, power generation, and high-performance engineering uses. Al Vishwas Nickel Alloys is dedicated to providing precision, durability, and steady quality, serving industries that rely on dependable nickel-based alloys for lasting performance in demanding operating environments.
**Nimonic 90 Sheet and Plates** are chiefly composed of a nickel-chromium-cobalt alloy, strengthened with titanium and aluminum. This unique combination delivers exceptional strength at high temperatures, notable creep resistance, and superb oxidation resistance. The alloy maintains outstanding mechanical stability even after prolonged exposure to elevated temperatures. It offers high tensile and fatigue strength, together with dependable corrosion resistance in demanding conditions. Its fine-grain structure enhances durability, while reliable weldability and formability make it ideal for complex, high-stress components. These mechanical qualities make Nimonic 90 an excellent option for engineering applications involving extreme temperatures.
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 1150 MPa | 725 MPa | 30% |
| Grade | Density | Specific Gravity | Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | Electrical Resistivity (microhm-cm (at 68 Deg F) | Melting Point (Deg F) |
| Alloy 90 | 8.18g/cm³ | 1370°C | 12.7 μm/m °C (20 – 100°C) | 82.5 kN/mm² | 213 kN/mm² 227 / 240 kN/mm² |
| 0.296 lb/in³ | 2500°F | 7.1 x 10-6 in/in °F (70 – 212°F) | 11966 ksi | 30894 ksi 32924 / 34810 ksi |
| STANDARD | WERKSTOFF NR. | UNS |
| Nimonic 90 | 2.4632 | N07090 |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic Sheet and Plates in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern manufacturing facilities are strategically positioned in the UAE, enabling us to keep an extensive inventory of more than 16,000 tons of high-quality materials on hand in stock. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our worldwide customers.
Get in touch with us for a fast quote tailored to your requirement.
**Nimonic 90 Sheet and Plates** are widely applied in industries that demand exceptional heat resistance and mechanical strength. Within the aerospace field, they serve in turbine blades, afterburner parts, exhaust systems, and structural components exposed to high temperatures. Power generation plants rely on them for gas turbine parts, combustion chambers, and heat-resistant equipment. They also see frequent application in automotive turbochargers, where reliable performance under intense stress is vital.
