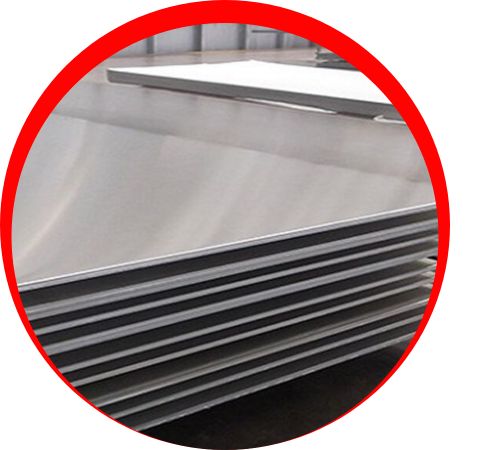

Al Vishwas Nickel Alloys, headquartered in Dubai, UAE, is a reliable manufacturer and supplier of premium-quality Zirconium Sheets and Plates. Recognized for their outstanding resistance to corrosion and durability, these products are engineered to operate dependably in extremely harsh chemical and industrial settings. Al Vishwas Nickel Alloys guarantees precise manufacturing, employing top-grade zirconium to provide steady quality and enduring performance. Catering to sectors including chemical processing, nuclear, marine, and aerospace, Zirconium Sheets and Plates from Al Vishwas Nickel Alloys deliver toughness, dependability, and adherence to international standards, making them a perfect selection for critical applications.
Zirconium Sheets and Plates are produced from high-purity zirconium, occasionally alloyed with small quantities of hafnium for particular uses. This makeup delivers outstanding corrosion resistance, especially against strong acids, alkalis, and seawater. They provide solid tensile and yield strength, together with high ductility and toughness, which makes them well-suited for forming and welding. Zirconium retains its mechanical integrity under high temperatures and in aggressive chemical settings. The blend of strength, flexibility, and corrosion resistance means Zirconium Sheets and Plates are highly dependable for critical industrial and chemical applications.
| Standard Specification : | ASTM B551 / ASME SB551 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Zirconium and Zirconium Alloys Chemical Composition | |||||||||
| Products | Chemical Composition (wt%≤) | ||||||||
| Sn | Fe | Ni | Cr | Fe+Cr | Fe+Ni+Cr | Nb | Al | B | |
| R60001 Nuclear Grade Pure Zirconium (Zr-0) | 0.005 | 0.15 | 0.0070 | 0.02 | – | – | – | 0.0075 | 0.0005 |
| R60802 (Zr-2) | 1.20-1.70 | 0.07-0.20 | 0.03-0.08 | 0.05-0.15 | – | 0.18-0.38 | – | 0.0075 | 0.0005 |
| R60804 (Zr-4) | 1.20-1.70 | 0.18-0.24 | 0.0070 | 0.07-0.13 | 0.28-0.37 | – | – | 0.0075 | 0.0005 |
| R60901 (Zr-2.5Nb) | 0.0050 | 0.150 | 0.0070 | 0.02 | – | – | 2.4-2.8 | 0.0075 | 0.0005 |
| R60904 (Zr-2.5Nb) | 0.010 | 0.065 | 0.0035 | 0.01 | – | – | 2.5-2.8 | 0.0075 | 0.0005 |
| Products | Chemical Composition(wt%≤) | ||||||||
| Cd | Co | Cu | Hf | Mg | Mn | Mo | Si | Ti | |
| R60001 Nuclear Grade Pure Zirconium (Zr-0) | 0.0005 | 0.0020 | 0.0050 | 0.010 | 0.0020 | 0.0050 | 0.0050 | 0.0120 | 0.0050 |
| R60802 (Zr-2) | 0.0005 | 0.0020 | 0.0050 | 0.010 | 0.0020 | 0.0050 | 0.0050 | 0.0120 | 0.0050 |
| R60804 (Zr-4) | 0.0005 | 0.0020 | 0.0050 | 0.010 | 0.0020 | 0.0050 | 0.0050 | 0.0120 | 0.0050 |
| R60901 (Zr-2.5Nb) | 0.0005 | 0.0020 | 0.0050 | 0.010 | 0.0020 | 0.0050 | 0.0050 | 0.0120 | 0.0050 |
| R60904 (Zr-2.5Nb) | 0.0005 | 0.0020 | 0.0050 | 0.005 | 0.0020 | 0.0050 | 0.0050 | 0.0120 | 0.0050 |
| Products | Chemical Composition (wt%≤) | ||||||||
| U | V | W | C | N | H | O | |||
| R60001 Nuclear Grade Pure Zirconium (Zr-0) | 0.0035 | 0.005 | 0.010 | 0.027 | 0.0065 | 0.0025 | 0.09-0.16 | ||
| R60802 (Zr-2) | 0.0035 | 0.005 | 0.010 | 0.027 | 0.0065 | 0.0025 | 0.09-0.16 | ||
| R60804 (Zr-4) | 0.0035 | 0.005 | 0.010 | 0.027 | 0.0065 | 0.0025 | 0.09-0.16 | ||
| R60901 (Zr-2.5Nb) | 0.0035 | – | 0.010 | 0.027 | 0.0080 | 0.0025 | 0.09-0.15 | ||
| R60904 (Zr-2.5Nb) | 0.0035 | 0.005 | 0.010 | 0.027 | 0.0065 | 0.0025 | 0.01-0.14 | ||
| Zirconium and Zirconium Alloys Sheet & Plate Mechanical Properties | |||||
| Grades | |||||
| Products | R60700 | R60702 | R60704 | R60705 | R60706 |
| Tensile strength, min, ksi (MPa) | – | 55 (380) | 60 (415) | 80 (550) | 74 (510) |
| Yield strength, min, ksi (MPa) | – | 30 (205) | 35 (240) | 55 (380) | 50 (345) |
| Tensile strength, max, ksi (MPa) | 55 (380) | – | – | – | – |
| Yield strength, max, ksi (MPa) Sheet, Plate and Strip | 44 (305) | – | – | – | – |
| Elongation in 2 in. or 50 mm, min, % | 20 | 16 | 14 | 16 | 14 |
| Bend test radius | 5T | 5T | 5T | 3T | 2.5T |
At Al Vishwas Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Zirconium Sheets and Plates in Dubai, UAE, delivering advanced solutions for every one of your piping requirements. Our modern manufacturing facilities are strategically situated in the UAE, enabling us to keep an extensive stock of more than 16,000 tons of top-quality materials on hand and ready in inventory. We are committed to supplying outstanding products and services, guaranteeing dependability and excellence for our clients around the world.
Reach out to us for a fast quote tailored to your requirement.
Zirconium Sheets and Plates find broad application across industries where resistance to corrosion and strong performance are critical. They work well for chemical processing equipment such as reactors, heat exchangers, and piping that comes into contact with harsh acids and chemicals. Within the nuclear sector, they serve in fuel cladding and reactor parts thanks to their minimal neutron absorption. Marine uses depend on zirconium’s ability to withstand seawater corrosion. Aerospace and advanced technology fields employ these sheets and plates for specialized parts that demand both strength and corrosion resistance. Because they are durable and dependable, they suit challenging industrial, chemical, and engineering uses.
